Description

www.jsustech.com

Model: JS-35
Certificate: CE
Dimension: Φ10.5*21.5mm
Housing: ABS ,white /brown
Gap: 15-25mm; 20-25mm availAble
Output: N.C. N.O. & Changeover available
Leads: 1007UL22AWG430mm; wire with cable available
Package:
Outer packing: 1600 sets/carton
Gross Weight: 20.0KG

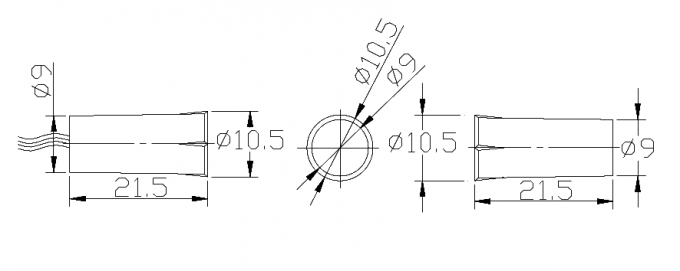

2.0 Dimension(mm)

Recessed Mount Magnetic Door Contacts in Dimension Φ10.5*21.5mm in ABS Material

3.0 Order information

Specification	Output	Casing Material	Action Gap(mm)	Max CUr./Vol./Power/Init.Ress(A/VDC/W/mΩ)	MOQ(PCS)
NC-ABS-1525	NC	ABS	15-25	0.5A/100V/10W/200mΩ	0
NC-ABS-2025	NC	ABS	20-25	0.5A/100V/10W/200mΩ	1000
NO-ABS-1525	NO	ABS	15-25	0.2A/30V/3W/200mΩ	500
COM-ABS-1525	changeover	ABS	15-25	0.2A/30V/3W/200mΩ	500

Key words : magnetic contact reed switch magnetic switch sensor door switch sensor recessed mount switch

Specification

Brand Name JSUS
Model Number JS-35
Is Customized Yes
Weight 0.22 kg
