www.jsustech.com

Model No.:JS-34B

Recessed mounted magnetic switch

Ideal for wooden door/ window

1. Housing: ABS material ; fireproof ABS housing is available on request

2.Color :white/brown

3.Gap: 20-25mm

4.Certificates:FCC,CE ,ROHS

5.Leads: 350mm in length is standard, longer leads available

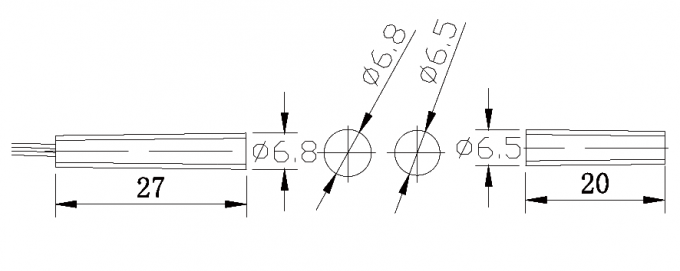

2.0 Dimension(mm)

Recessed Door switch sensor in dimension: Φ6.8*27mm for wood door or window

3.0 Order information

Specification	Output	Casing Material	Action Gap(mm)	Max CUr./Vol./Power/Init.Ress(A/VDC/W/mΩ)	MOQ(PCS)
NC-FPABS-2025	NC	fireproof ABS	20-25	0.5A/100V/10W/200mΩ	1000
NC-ABS-2025	NC	ABS	20-25	0.5A/100V/10W/200mΩ	0
NO-ABS-2025	NO	ABS	20-25	0.2A/30V/3W/200mΩ	500
COM-ABS-2025	changeover	ABS	20-25	0.2A/30V/3W/200mΩ	500

Key words : magnetic contact reed switch magnetic switch sensor door switch sensor recessed mount switch

Specification

Brand Name JSUS
Model Number JS-34B
Usage Window
Is Customized Yes
Weight 0.34 kg
