Model: JS-55AL
1.0 Specification
Roller shutter sensor,heavy duty overhead door contact sensor,
for Mounting on Door Tracks,
Adjustable "L" bracket, magnet can be installed in many ways!
Armored cable in 380mm or 480mm length
Wider Gap for reduced false alarms
Closed Loop, open loop and SPDT types
1. Housing: aluminum material
2.Color: grey
3.Gap:50-70 mm
4.Certificates:FCC,CE ,ROHS
5.Surface mounted with screws, leads 530mm standard length, with armored cover cable of 380mm or 480mm

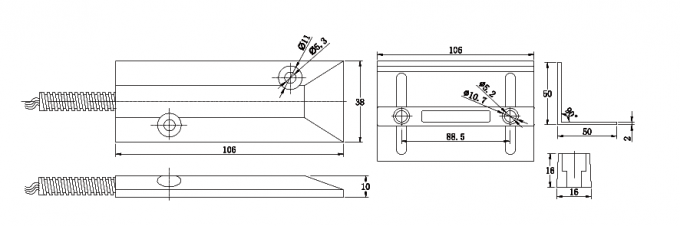

2.0 Dimension(mm)
3.0 Order information
| Specification | Output | Casing Material | Action Gap(mm) | Max CUr./Vol./Power/Init.Ress(A/VDC/W/mΩ) | MOQ(PCS) |
| NC-AL-6070 | NC | aluminum | 60-70 | 0.5A/100V/10W/200mΩ | 0 |
| N0-AL-5060 | NO | aluminum | 50-60 | 0.2A/30V/3W/200mΩ | 500 |
| COM-AL-5060 | Changeover | aluminum | 50-60 | 0.2A/30V/3W/200mΩ | 500 |
Key words : magnetic contact reed switch magnetic switch sensor heavy duty door sensor overhead roll shutter
