Model Number:JS-58
1.0 Specification
surface mounted magnetic switch
Ideal for metal door/ window, for commercial applications and where a wide gap is needed
1. Housing: zinc-alloyed
2.Color :grey
3.Gap: 40-60mm
4.Certificates:FCC,CE ,ROHS
5.Leads: 430mm in length is standard, longer leads available;

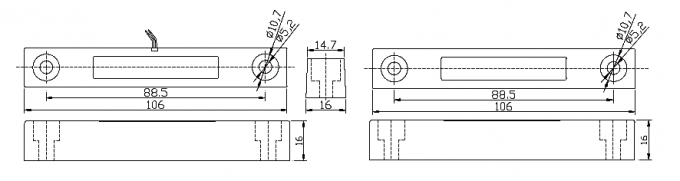

2.0 Dimension(mm)
3.0 Order information
| Specification | Output | Casing Material | Action Gap(mm) | Max CUr./Vol./Power/Init.Ress(A/VDC/W/mΩ) | MOQ(PCS) |
| NC-ZN-4050 | NC | Alloy-zinc | 40-50 | 0.5A/100V/10W/200mΩ | 0 |
| NC-ZN-5060 | NC | Alloy-zinc | 50-60 | 0.5A/100V/10W/200mΩ | 500 |
| N0-ZN-4050 | NO | Alloy-zinc | 40-50 | 0.2A/30V/3W/200mΩ | 500 |
| COM-ZN-4050 | Changeover | Alloy-zinc | 40-50 | 0.2A/30V/3W/200mΩ | 500 |
Key words : magnetic contact reed switch magnetic switch sensor door switch sensor surface mount switch
