Surfaced Mount Magnetic Door Switch Sensor JS-37 In dimension 34*14*7.5mm ideal for wood door or window

Surfaced Mount Magnetic Door Switch Sensor JS-37 In dimension 34147.5mm ideal for wood door or window

0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.74251

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews Request Quote

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Download
Questions & Answers
Customer Reviews

$ 0.4

0Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}

{{ item.num }} pieces

$ {{ item.price }}

{{item.name}}* {{item.values[0].value}}: {{sku.value}}

Quantity:

{{detail_data.displayed_price.unit_type_name}}(s)

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Shipping:

Free Shipping

Can't deliver

To Be Negotiated

to United States Change

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details

Total Price:

$ 0.4 ~~$ 0.00~~

Shipping calculated at checkout.

Weight:

{{Number(packInfo.weight).toFixed(2)}} KG

Package:

{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm

Returns:

Read details

Add to Wish list

You May Also Like

Surfaced mount door switch sensors JS-38C in ABS housing with CE for door or window

$ 0.4 ~~$ 0.00~~
Surface mounted door switch sensor JS-38B in ABS Housing with size 27*14*8MM

$ 0.4 ~~$ 0.00~~
JS-31 Surfaced Mount Magnetic Door Sensor for Wooden Door, CE/RoHS Directive-compliant

$ 0.4 ~~$ 0.00~~
JS-38 Surface mounted Magnetic Contacts in ABS housing with CE for options of NC,NO&COM

$ 0.4 ~~$ 0.00~~
JS-40 ABS Magnetic Door Contacts in size of 40*10*7MM in ABS material Made-In-China

$ 0.4 ~~$ 0.00~~
CE Certified Surface mounted door switch sensors JS-42 in ABS Material With gap of 20-25MM

$ 0.5 ~~$ 0.00~~
JS-32 Door switch sensor in ABS housing ideal for door or window with CE

$ 0.4 ~~$ 0.00~~
Surface mounted magnetic contact JS-53 in ABS housing Ideal for metal door/ window

$ 3 ~~$ 0.00~~

Description
Description
Specification
Download
Customer Reviews
Questions & Answers

Description

Model: JS-37
Brand: JSUS
Certificate: CE
Dimension: 234*14*6.5mm
Housing: ABS ,white /brown
Gap: 15-25mm; 20-25availble
Output: N.C. N.O. & Changeover available
Leads: 1007UL24AWG330mm; 1007UL22AWG430mm available
Package:
Inner packing: 20sets/PE
Outer packing: 1000 sets/carton
Gross Weight: 15.0KG
Remarks: 4 screws included, with double-sided tapes sticked on the bottom,3M brand available.

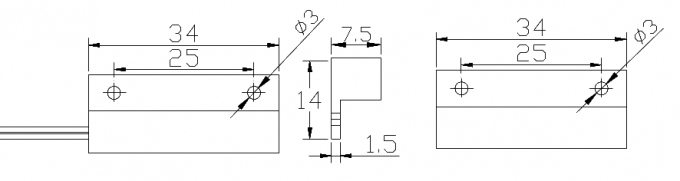

2.0 Dimension(mm)

Surfaced Mount Magnetic Door Switch Sensor In dimension 34*14*7.5mm ideal for wood door or window

3.0 Order information

Specification	Output	Casing Material	Action Gap(mm)	Max CUr./Vol./Power/Init.Ress(A/VDC/W/mΩ)	MOQ(PCS)
NC-ABS-1525	NC	ABS	15-25	0.5A/100V/10W/200mΩ	0
NC-ABS-2025	NC	ABS	20-25	0.5A/100V/10W/200mΩ	1000
NO-ABS-1525	NO	ABS	15-25	0.5A/30V/3W/200mΩ	500
COM-ABS-1525	changeover	ABS	15-25	0.2A/30V/3W/200mΩ	500

Key words : magnetic contact reed switch magnetic switch sensor door switch sensor surface mount switch
